Features&Advantages
1) High reliability: using distributed scanning technology and module design technology that make higher
reliability and stability.
2) Steady and reliable system:with strong anti-interference ability and long service life that can continually
work for over 24 hours, and it’s easy to operate the system.
3) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide
horizon.
4) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and
error detection automatically.
5) Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
6) Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
Product Parameters
| Item |

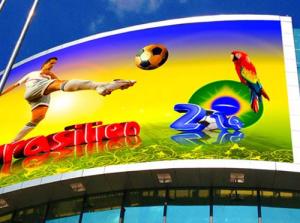

Outdoor full color SMD led p8 display |
| Model Number |
p8 |
| Pixel Pitch |
8mm |
| Pixel Density(dots/m²) |
15625 |
| Pixel Configuration |
1R1G1B |
| LED Type |
SMD3535 |
| Module size(mm) |
256*128 |
| Module Resolution(dots) |
32*16 |
| Min.Viewing Distance(m) |
≥8 |
| Brightness(cd/m²) |
≥7000 |
| Viewing Angle(degree) |
≤120° |
| Average Power Consumption(w/m²) |
500-850 |
| Scan Mode |
1/4 |
| Protection Level |
IP65 |
| Cabinet Size(mm) |
768*768 |
| Color Temperature |
The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
| Input Voltage |
AC220 V/50HZ or AC 110V/60HZ |
| Refresh Rate |
LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
| Color |
64g color(on the condition of 4096 gray scale) |
| Horizontal/Vertical viewing angle |
<120° |
| Gray Scale |
Recommended 14BIT |
| Effective Communication Distance(without relay) |
Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Our Service:
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 24 months, a little investment for longer warranty time.
